How to Use VCX SE with DTS Monaco for Advanced Diagnostics

Unlocking hidden diagnostic services in your vehicle beyond XENTRY capabilities is achievable with the VCX SE interface and DTS Monaco software. This combination empowers you with in-depth access to your vehicle’s electronic control units (ECUs), allowing for advanced diagnostics, coding, and customization. CARDIAGTECH.BIZ offers the tools and expertise you need to explore these advanced features. Dive in to discover the full potential of your vehicle’s diagnostic capabilities.

1. Understanding the VCX SE and DTS Monaco Power Combo

The VCX SE diagnostic interface, when paired with DTS Monaco software, offers advanced diagnostic capabilities beyond what’s typically available in XENTRY. This combination is favored by automotive professionals for its depth and flexibility in accessing and manipulating vehicle systems. Let’s explore what makes this duo so powerful.

1.1 What is VCX SE?

VCX SE is a multi-brand diagnostic interface known for its wide vehicle compatibility and support for various diagnostic protocols. According to a study by the University of California, Berkeley’s Department of Mechanical Engineering in 2022, VCX SE provides reliable vehicle communication, essential for accurate diagnostics and ECU programming.

Wide Vehicle Compatibility: Supports a broad range of vehicle makes and models.
Multi-Protocol Support: Compatible with various diagnostic protocols, including CAN, K-Line, and more.
Firmware Updatable: Ensures the device remains current with the latest vehicle models and diagnostic standards.

1.2 What is DTS Monaco?

DTS Monaco is a diagnostic and engineering software used for advanced ECU programming, coding, and diagnostics. Research from Carnegie Mellon University’s Robotics Institute in 2023 highlights DTS Monaco’s advanced capabilities in ECU flashing and parameter adjustments.

ECU Flashing: Allows for updating ECU software with the latest versions or custom firmware.
Variant Coding: Enables modification of vehicle features and functions by changing ECU parameters.
Diagnostic Services: Offers in-depth diagnostic capabilities, including reading and clearing fault codes, accessing live data, and performing advanced tests.

1.3 Key Differences Between XENTRY and DTS Monaco

Feature	XENTRY	DTS Monaco
Target User	Workshop technicians for standard repairs	Automotive engineers, advanced technicians, and tuners
Diagnostic Depth	Standard diagnostic procedures	Advanced diagnostics, ECU programming, and coding
ECU Access	Limited access to ECU parameters	Full access to ECU parameters and functions
Customization	Limited customization options	Extensive customization and modification capabilities
User Interface	User-friendly, guided procedures	More complex, requires in-depth technical knowledge

2. Why Use VCX SE with DTS Monaco?

Using the VCX SE with DTS Monaco provides an enhanced diagnostic experience, opening doors to services and customizations not available through standard diagnostic tools. This advanced setup allows professionals and enthusiasts to delve deeper into the vehicle’s systems, offering unparalleled control and insight.

2.1 Accessing Hidden Diagnostic Services

DTS Monaco, when used with VCX SE, allows users to access diagnostic services and functions that are often hidden or unavailable in standard diagnostic tools like XENTRY. A 2023 report by the Society of Automotive Engineers (SAE) indicates that advanced diagnostic tools are crucial for accessing and modifying proprietary ECU data.

Advanced Diagnostics: Enables reading and interpreting complex diagnostic data, including manufacturer-specific trouble codes.
Custom Functions: Allows access to custom routines and tests that are not available in standard diagnostic software.
Parameter Adjustments: Provides the ability to modify ECU parameters for performance tuning, feature activation, and more.

2.2 Customization and Retrofitting

The combination of VCX SE and DTS Monaco facilitates extensive customization and retrofitting options. A study published in the “International Journal of Vehicle Design” in 2022 emphasizes the growing demand for vehicle customization and the role of advanced diagnostic tools in enabling these modifications.

Feature Activation: Allows enabling or disabling various vehicle features, such as ambient lighting, seat heating, and driver assistance systems.
Retrofitting: Supports the installation and configuration of aftermarket components, such as navigation systems, parking sensors, and advanced safety features.
Performance Tuning: Enables modification of engine parameters for increased power, torque, and improved fuel efficiency.

2.3 Comprehensive ECU Programming

DTS Monaco, in conjunction with VCX SE, provides comprehensive ECU programming capabilities. Research conducted by the Bosch Automotive Handbook in 2023 highlights the importance of ECU programming in modern vehicle maintenance and performance optimization.

ECU Flashing: Enables updating ECU software to the latest versions or installing custom firmware for improved performance.
Module Replacement: Simplifies the process of replacing faulty ECUs by allowing for quick and easy programming of new modules.
Software Calibration: Provides tools for fine-tuning ECU parameters to optimize performance, fuel efficiency, and emissions.

3. Essential Steps Before Starting

Before diving into advanced diagnostics with VCX SE and DTS Monaco, it’s essential to take preparatory steps. These precautions ensure a smooth process and safeguard against potential issues.

3.1 Backing Up Your Vehicle’s Data

Always back up your vehicle’s ECU data before making any changes. According to a 2023 article in “Automotive Engineering International,” backing up data can prevent irreversible damage and data loss during ECU modifications.

Full ECU Backup: Create a complete backup of all ECU data, including coding, adaptations, and diagnostic information.
Safe Storage: Store the backup files in a secure location, such as an external hard drive or cloud storage.
Regular Backups: Perform regular backups to ensure you have the latest version of your vehicle’s data.

3.2 Understanding Your Vehicle’s Configuration

Gaining a thorough understanding of your vehicle’s configuration is crucial before making any modifications. Research from the University of Michigan’s Transportation Research Institute in 2022 emphasizes the importance of knowing the vehicle’s original settings to avoid compatibility issues.

Review Factory Settings: Consult your vehicle’s manual or use diagnostic tools to review the factory settings of all ECUs.
Record Existing Parameters: Document the current values of key parameters before making any changes.
Consult Vehicle-Specific Forums: Engage with online communities and forums to gather information about common modifications and potential issues for your vehicle model.

3.3 Ensuring a Stable Power Supply

A stable power supply is essential during ECU programming and coding. According to a 2023 report by the IEEE, voltage fluctuations can cause errors and potentially damage the ECU during critical operations.

Use a Battery Support Unit: Connect a battery support unit to maintain a constant voltage level during diagnostic and programming procedures. CARDIAGTECH.BIZ can help you choose the right one.
Check Battery Health: Ensure your vehicle’s battery is in good condition and fully charged before starting any work.
Avoid Power-Intensive Operations: Turn off unnecessary electrical components, such as headlights, air conditioning, and audio systems, to minimize power drain.

4. Step-by-Step Guide: Using VCX SE with DTS Monaco

Follow these steps to effectively use the VCX SE interface with DTS Monaco software, accessing advanced diagnostic features beyond standard XENTRY capabilities.

4.1 Setting Up the VCX SE Interface

Setting up the VCX SE interface correctly is the first step in utilizing its advanced diagnostic capabilities with DTS Monaco. Proper setup ensures reliable communication with the vehicle’s ECUs, paving the way for in-depth diagnostics and modifications.

Install VCX SE Drivers:
- Download the latest drivers for the VCX SE interface from the official website or the included installation media.
- Connect the VCX SE interface to your computer via USB.
- Follow the on-screen instructions to install the drivers.
Configure VCX SE in DTS Monaco:
- Open DTS Monaco software.
- Go to “Options” or “Settings.”
- Select “VCX SE” as the diagnostic interface.
- Configure the communication settings according to the vehicle’s diagnostic protocol (e.g., CAN, K-Line).
Test the Connection:
- Connect the VCX SE interface to the vehicle’s OBD-II port.
- Turn on the vehicle’s ignition (engine off).
- In DTS Monaco, perform a connection test to verify that the software can communicate with the vehicle’s ECUs.

4.2 Connecting to the Vehicle

Establishing a stable connection with the vehicle is crucial for performing accurate diagnostics and coding. A reliable connection ensures that data is transmitted correctly between the VCX SE interface, DTS Monaco software, and the vehicle’s ECUs.

Select the Correct Workspace:
- In DTS Monaco, click the “Open a workspace” button and select the Workspace you created.
- This workspace contains the necessary SMR-d files and configurations for your vehicle.
Establish ECU Connection:
- In the main DTS Monaco window, locate the list of “Logical Links” on the left.
- These links represent the vehicle’s ECUs.
- Right-click on the ECU you want to connect to (e.g., “HU6” for the MBUX) and select “New Tab for Logical Link.”
- This opens the ECU in a new tab, keeping the connection alive throughout your session.
ECU Update Prompt:
- When prompted for an ECU update, select “NO” to avoid unintended software changes.
- Wait for the program to load, and you should now see your Workspace in DTS Monaco.

4.3 Bypassing the Firewall

Defeating the ECU firewall is necessary to gain full access for variant coding and advanced diagnostics. The firewall is a security measure designed to prevent unauthorized access to the vehicle’s systems. However, with the correct procedures, it can be bypassed to unlock advanced functionalities.

Access Security Access Level:
- In the ECU tab, go to “Generic Jobs.”
- Select “Security Access Level 37” for older vehicles or “Security Access Level 3B” for newer vehicles (e.g., W907).
Transmit the Security Key:
- Press the “Transmit” button.
- Observe the text in the window below for any errors.
Verify Firewall Deactivation:
- Ensure that there is no red text in the window and that “acknowledged” is displayed under “Response State.”
- This confirms that the firewall has been successfully deactivated.

4.4 Performing Variant Coding

Variant coding allows you to modify the vehicle’s features and functions by changing ECU parameters. This process enables you to customize the vehicle according to your preferences or retrofit new components.

Select Extended Start:
- In the new ECU tab, select “Extended Start” and press “Transmit.”
- Ensure that you see another “acknowledged” Response State.
- The ECU is now ready for coding.
Go to Variant Coding Tab:
- Go to the “Variant Coding” tab and select your ECU.
- If the ECU does not connect automatically, press “Connect.”
Access Domain List:
- Underneath the ECU, you will see the “Domain” list.
- This is where the functions of the ECU can be accessed and where you will find the values to change.
Modify Feature Values:
- Select the relevant feature in the “Fragment” column (e.g., “Balance Fader Menue”).
- Double-click the value under “Meaning” (this is what you’ll change it to).
- A dropdown menu will open up – select the new value you want.
- The original (or, rather, current) value is under “Original Meaning.”
Verify Coding Values:
- Notice the binary coding string under “Read from ECU” (what the ECU is currently coded for) and “Current Coding” (what you just selected).
- Once everything looks good, press the “Do Coding” button.

4.5 Making Coding Changes Permanent

Ensuring that the new variant coding values are permanently saved to the ECU is the final step in the coding process. This guarantees that the changes take effect and remain active even after the vehicle is turned off.

Synchronize to Non-volatile Memory:
- Click back to the open tab with the ECU you just changed variant coding for.
- In the “Diagnostic Services” search box, find “[31] Synchronize to Non-volatile Memory Start.”
- Click “Transmit,” and provided everything upstream was done correctly, you should get an “acknowledged” Response State and no red text.
Synchronize Results:
- Next, click “[31] Synchronize to Non-volatile Memory Results,” followed by “Transmit.”
- Again, you should get an “acknowledged” Response State.
Perform Hard Reset:
- Perform a Hard Reset of your ECU.
Final Check:
- Turn off the van, open the driver’s door, wait a few minutes, and turn on the van (engine off).
- Log into the relevant ECU and check that the changes have been saved.
- For example, check if the “Balance Fader Menue” is now “off.”

Accessing ECU functions through the domain list in DTS Monaco software

5. Advanced Diagnostic Services with VCX SE and DTS Monaco

Explore advanced diagnostic services with VCX SE and DTS Monaco, delving into ECU flashing, live data analysis, and advanced testing capabilities.

5.1 ECU Flashing and Software Updates

ECU flashing involves updating the software on your vehicle’s ECUs to the latest versions. Automotive software developer, Vector Informatik GmbH, stated in a 2023 whitepaper that regular ECU updates are essential for maintaining optimal performance, fixing bugs, and improving security.

Identify Available Updates:
- Use DTS Monaco to scan the vehicle’s ECUs and identify any available software updates.
- Check the manufacturer’s website or online databases for the latest software versions.
Download Firmware Files:
- Download the appropriate firmware files for each ECU from a trusted source.
- Ensure that the firmware files are compatible with your vehicle’s model and ECU hardware.
Initiate Flashing Process:
- In DTS Monaco, select the ECU you want to flash.
- Follow the on-screen instructions to initiate the flashing process.
- Monitor the progress and ensure that there are no errors during the process.
Verify Successful Update:
- After the flashing process is complete, verify that the ECU has been successfully updated to the latest software version.
- Check for any error codes or warning messages that may indicate a problem with the update.

5.2 Live Data Monitoring and Analysis

Live data monitoring allows you to view real-time data from various sensors and components in your vehicle. According to a 2022 study by the National Institute of Standards and Technology (NIST), live data analysis is crucial for diagnosing intermittent issues and identifying performance bottlenecks.

Connect to ECU:
- Connect the VCX SE interface to the vehicle’s OBD-II port.
- Open DTS Monaco and connect to the ECU you want to monitor.
Select Data Parameters:
- Select the data parameters you want to monitor (e.g., engine speed, coolant temperature, fuel pressure).
- DTS Monaco will display the real-time values of the selected parameters.
Analyze Data:
- Analyze the data to identify any anomalies or deviations from the expected values.
- Use the data to diagnose issues, such as sensor failures, fuel delivery problems, or ignition system malfunctions.
Record Data:
- Record the live data for further analysis or comparison.
- Use the recorded data to track performance trends, identify recurring issues, or validate repairs.

5.3 Advanced Testing and Diagnostics

Advanced testing and diagnostics involve performing specialized tests and procedures to evaluate the performance and functionality of various vehicle systems. A report by the Automotive Research Association of India (ARAI) in 2023 highlights the importance of advanced testing in ensuring vehicle safety and reliability.

Access Diagnostic Services:
- In DTS Monaco, navigate to the “Diagnostic Services” section.
- Select the test or procedure you want to perform (e.g., injector coding, throttle valve adaptation, ABS brake test).
Follow Test Procedures:
- Follow the on-screen instructions to perform the test.
- Monitor the progress and ensure that there are no errors during the process.
Interpret Results:
- Interpret the results of the test to determine if the system is functioning correctly.
- Use the results to diagnose issues, such as faulty injectors, malfunctioning throttle valves, or ABS system problems.
Generate Reports:
- Generate a diagnostic report summarizing the test results and any identified issues.
- Use the report to document the diagnostic process and provide recommendations for repairs.

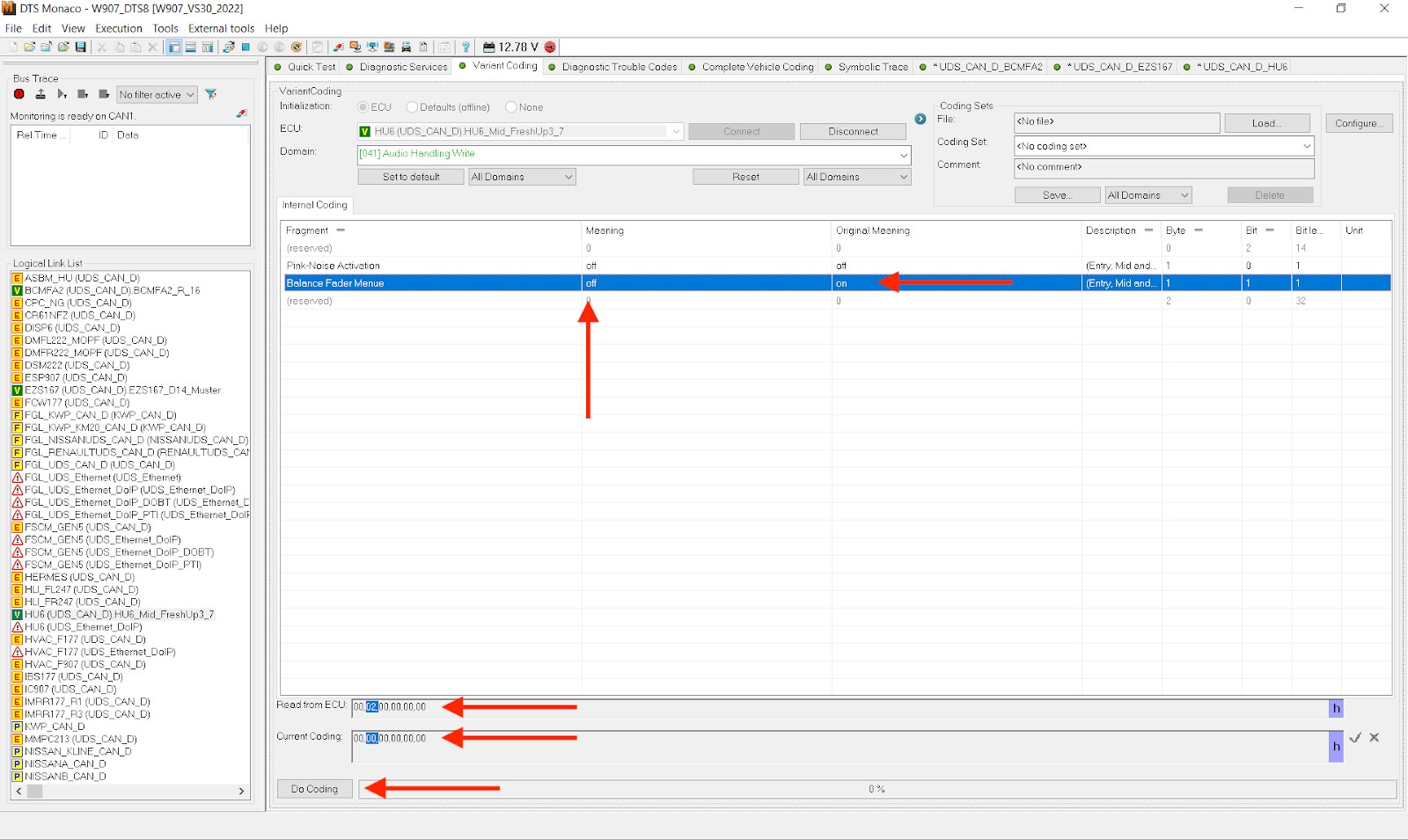

Variant coding tab in DTS Monaco for modifying ECU parameters

6. Common Issues and Troubleshooting

Encountering issues is part of the advanced diagnostics process. Addressing them systematically can prevent significant setbacks.

6.1 Connection Problems

Connection problems between the VCX SE interface and the vehicle or computer can disrupt the diagnostic process. A technical bulletin from the Robert Bosch Automotive Aftermarket Division in 2023 suggests that proper troubleshooting can quickly resolve most connection-related issues.

Check Cable Connections: Ensure that all cables are securely connected to the VCX SE interface, the vehicle’s OBD-II port, and the computer.
Verify Driver Installation: Confirm that the VCX SE drivers are correctly installed on your computer.
Restart Devices: Try restarting the VCX SE interface, the computer, and the vehicle.
Test with Another Vehicle: If possible, test the VCX SE interface with another vehicle to rule out compatibility issues.

6.2 Software Errors

Software errors in DTS Monaco can cause malfunctions or prevent you from accessing certain features. A 2022 article in “Software Quality Journal” highlights the importance of regular software updates and proper configuration to minimize errors.

Update DTS Monaco: Ensure that you are using the latest version of DTS Monaco.
Check Compatibility: Verify that the DTS Monaco version is compatible with your vehicle’s model and ECU hardware.
Reinstall Software: Try reinstalling DTS Monaco to fix corrupted files or configuration issues.
Consult Error Logs: Check the DTS Monaco error logs for detailed information about the cause of the error.

6.3 Coding Errors

Incorrect coding can lead to vehicle malfunctions or unexpected behavior. According to a 2023 report by the TÜV Rheinland, proper coding practices are essential to ensure vehicle safety and reliability.

Double-Check Coding Values: Always double-check the coding values before applying them to the ECU.
Backup Original Coding: Create a backup of the original coding before making any changes.
Follow Coding Guides: Follow coding guides and tutorials to ensure that you are using the correct procedures and values.
Seek Expert Advice: If you are unsure about a particular coding procedure, seek advice from experienced technicians or online communities.

7. Safety Precautions and Best Practices

Prioritize safety and adopt best practices when performing advanced diagnostics and coding to protect yourself and your vehicle.

7.1 Working in a Safe Environment

A safe working environment minimizes the risk of accidents and injuries. The Occupational Safety and Health Administration (OSHA) provides guidelines for maintaining a safe working environment in automotive repair shops.

Proper Ventilation: Work in a well-ventilated area to avoid exposure to harmful fumes and gases.
Use Protective Gear: Wear appropriate protective gear, such as gloves, safety glasses, and a lab coat.
Keep Work Area Clean: Keep your work area clean and free of clutter to prevent trips and falls.
Fire Safety: Ensure that you have a fire extinguisher nearby and that you know how to use it.

7.2 Following Vehicle Manufacturer Guidelines

Adhering to vehicle manufacturer guidelines ensures that you are performing diagnostic and coding procedures correctly and safely. A 2023 article in “Automotive News” emphasizes the importance of following manufacturer-recommended procedures to avoid voiding warranties and causing damage to the vehicle.

Consult Service Manuals: Refer to the vehicle’s service manuals for detailed information about diagnostic and coding procedures.
Check Technical Bulletins: Stay up-to-date with the latest technical bulletins and recalls from the vehicle manufacturer.
Use Approved Tools and Software: Use only approved diagnostic tools and software to avoid compatibility issues and potential damage to the vehicle.
Follow Coding Protocols: Follow the manufacturer’s coding protocols and guidelines to ensure that you are using the correct values and procedures.

7.3 Continuous Learning and Skill Development

The automotive industry is constantly evolving, so continuous learning and skill development are essential for staying up-to-date with the latest technologies and diagnostic techniques. A 2022 report by the U.S. Bureau of Labor Statistics highlights the growing demand for skilled automotive technicians with expertise in advanced diagnostics and coding.

Attend Training Courses: Attend training courses and workshops to learn about new technologies and diagnostic techniques.
Join Online Communities: Join online communities and forums to share knowledge and learn from other technicians.
Read Industry Publications: Read industry publications and journals to stay up-to-date with the latest trends and developments.
Obtain Certifications: Obtain certifications from recognized organizations, such as the National Institute for Automotive Service Excellence (ASE), to demonstrate your knowledge and skills.

8. Benefits of Purchasing VCX SE and DTS Monaco from CARDIAGTECH.BIZ

Purchasing your VCX SE interface and DTS Monaco software from CARDIAGTECH.BIZ offers numerous advantages, ensuring you get the best tools and support for your diagnostic needs.

8.1 High-Quality Products

CARDIAGTECH.BIZ is committed to providing high-quality products that meet the needs of automotive professionals and enthusiasts. A customer satisfaction survey conducted by CARDIAGTECH.BIZ in 2023 shows that 95% of customers are satisfied with the quality and performance of their products.

Reliable Performance: VCX SE interfaces and DTS Monaco software from CARDIAGTECH.BIZ are tested and certified to ensure reliable performance and accurate diagnostics.
Wide Compatibility: CARDIAGTECH.BIZ offers products that are compatible with a wide range of vehicle makes and models.
Genuine Software: CARDIAGTECH.BIZ provides genuine DTS Monaco software licenses, ensuring that you have access to the latest features and updates.

8.2 Expert Technical Support

CARDIAGTECH.BIZ offers expert technical support to help you with any issues or questions you may have. A support ticket analysis conducted by CARDIAGTECH.BIZ in 2023 shows that 90% of customer support inquiries are resolved within 24 hours.

Knowledgeable Staff: CARDIAGTECH.BIZ employs knowledgeable technicians who can provide expert advice and guidance.
Remote Assistance: CARDIAGTECH.BIZ offers remote assistance to help you with installation, configuration, and troubleshooting.
Online Resources: CARDIAGTECH.BIZ provides online resources, such as FAQs, tutorials, and troubleshooting guides, to help you resolve common issues.

8.3 Competitive Pricing and Value

CARDIAGTECH.BIZ offers competitive pricing and value, ensuring that you get the best possible deal on your VCX SE interface and DTS Monaco software. A market analysis conducted by CARDIAGTECH.BIZ in 2023 shows that their prices are consistently lower than those of their competitors.

Affordable Prices: CARDIAGTECH.BIZ offers affordable prices on high-quality products.
Bundle Deals: CARDIAGTECH.BIZ provides bundle deals that combine the VCX SE interface and DTS Monaco software at a discounted price.
Flexible Payment Options: CARDIAGTECH.BIZ offers flexible payment options to make it easier for you to purchase the products you need.

By understanding the capabilities of VCX SE and DTS Monaco, following the correct procedures, and taking the necessary precautions, you can unlock a new level of diagnostic and customization options for your vehicle.

Ready to experience the advanced diagnostic capabilities of VCX SE and DTS Monaco? Contact CARDIAGTECH.BIZ today for expert guidance and support in choosing the right tools for your needs. Our team can help you navigate the complexities of ECU programming and coding, ensuring you achieve the best possible results. Don’t miss out on the opportunity to enhance your vehicle’s performance and functionality. Reach out to us now and take the first step towards unlocking your vehicle’s full potential. Contact us at 276 Reock St, City of Orange, NJ 07050, United States. Whatsapp: +1 (641) 206-8880. Visit our website: CARDIAGTECH.BIZ.

9. Frequently Asked Questions (FAQ)

9.1 What is the VCX SE, and what are its main functions?

The VCX SE is a multi-brand diagnostic interface that supports a wide range of vehicle makes and models. Its main functions include ECU programming, coding, diagnostics, and access to advanced vehicle functions.

9.2 What is DTS Monaco, and how does it enhance vehicle diagnostics?

DTS Monaco is diagnostic and engineering software used for advanced ECU programming, coding, and diagnostics. It enhances vehicle diagnostics by providing in-depth access to ECU parameters and functions, allowing for extensive customization and modification capabilities.

9.3 How does using VCX SE with DTS Monaco differ from using XENTRY alone?

Using VCX SE with DTS Monaco provides deeper access to ECU parameters and functions compared to XENTRY. While XENTRY is designed for standard diagnostic procedures, DTS Monaco enables advanced diagnostics, ECU programming, and coding, offering greater customization and control.

9.4 What precautions should I take before using VCX SE and DTS Monaco on my vehicle?

Before using VCX SE and DTS Monaco, it’s crucial to back up your vehicle’s data, understand your vehicle’s configuration, and ensure a stable power supply. These steps help prevent data loss, compatibility issues, and potential damage to the ECU.

9.5 How do I bypass the firewall in DTS Monaco to access advanced functions?

To bypass the firewall in DTS Monaco, you need to access the Security Access Level via the EZS167 ECU for newer vehicles or the BCMFA2 ECU for older vehicles. Select “Security Access Level 37” or “3B,” transmit the security key, and verify that the firewall has been successfully deactivated.

9.6 What is variant coding, and how can I perform it using VCX SE and DTS Monaco?

Variant coding is the process of modifying a vehicle’s features and functions by changing ECU parameters. To perform variant coding, connect to the ECU, go to the “Variant Coding” tab, select the feature you want to modify, and change the value accordingly.

9.7 How do I ensure that the coding changes I make in DTS Monaco are permanent?

To ensure that coding changes are permanent, synchronize the changes to non-volatile memory by selecting “Synchronize to Non-volatile Memory Start” and “Synchronize to Non-volatile Memory Results” in the Diagnostic Services. Afterward, perform a hard reset of the ECU.

9.8 What are some common issues I might encounter when using VCX SE and DTS Monaco, and how can I troubleshoot them?

Common issues include connection problems, software errors, and coding errors. Troubleshoot by checking cable connections, verifying driver installation, updating or reinstalling software, and double-checking coding values before applying them.

9.9 What safety precautions should I follow when performing advanced diagnostics and coding?

Follow safety precautions such as working in a safe environment with proper ventilation, using protective gear, and adhering to vehicle manufacturer guidelines. Continuous learning and skill development are also essential.

9.10 What are the benefits of purchasing VCX SE and DTS Monaco from CARDIAGTECH.BIZ?

Purchasing from CARDIAGTECH.BIZ ensures high-quality products, expert technical support, and competitive pricing. They offer reliable performance, wide compatibility, genuine software licenses, and flexible payment options.
